Good Products Begins With High Performance Tooling!

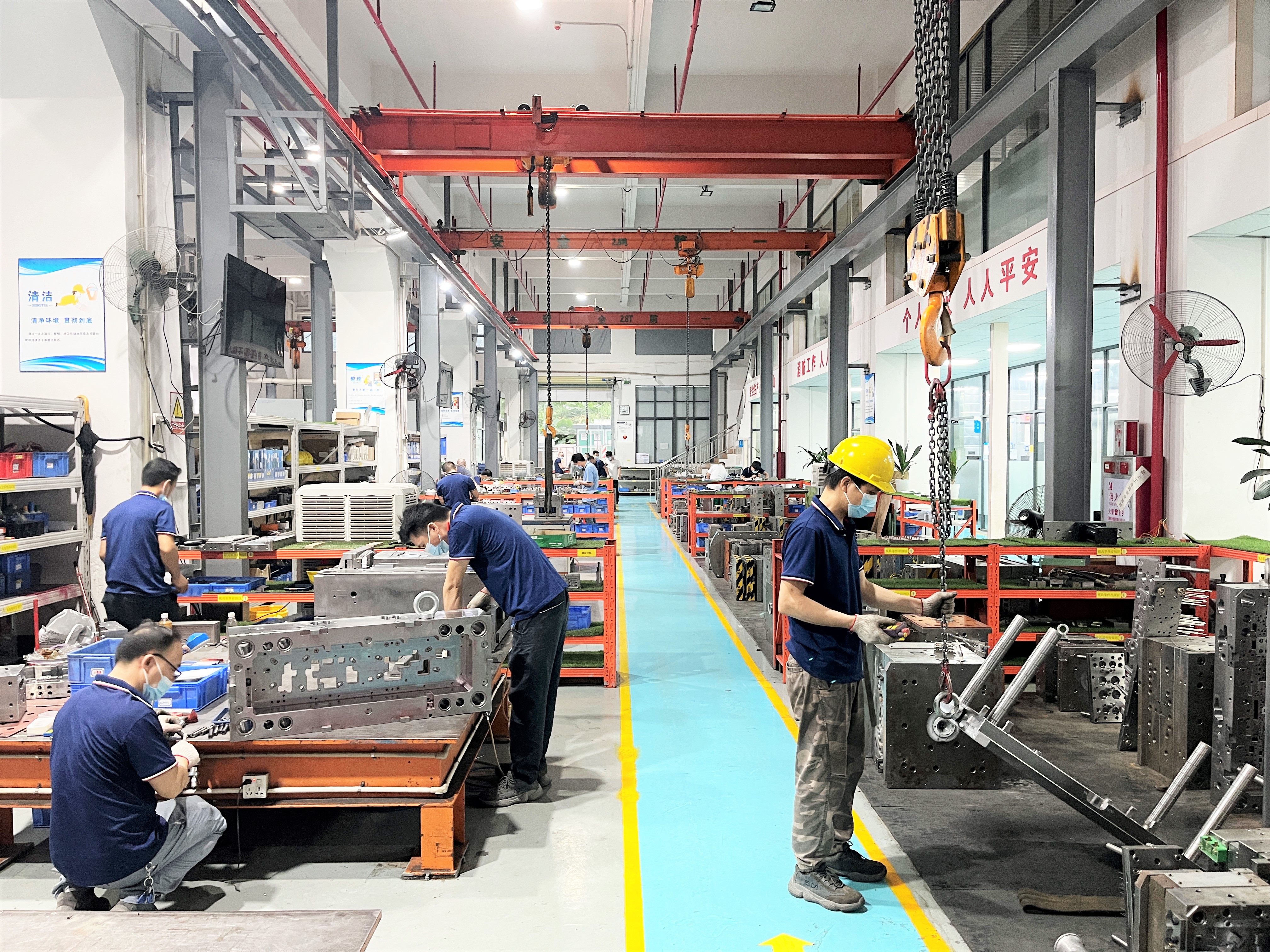

Alpha-Mold is a leading mold maker in China. Our team have over 20 years experience in mold design and mold manufacturing for both plastic and metal parts. Our molds are trusted globally, with most being exported to North America, Europe and Asia.We specialize in delivering tailored solutions that span the entire production cycle from prototype molds for initial testing to pilot molds for process refinement, and high-volume production molds. Our team is committed to meeting and exceeding our customers’ stringent requirements.
At Alpha-Mold, we leverage advanced mold-making technology and a team of highly skilled professionals to provide innovative, high-quality mold solutions. Our focus on precision, durability, and efficiency ensures that every mold we create stands up to the demands of modern manufacturing. Whether you need a custom mold for injection molding, die casting, stamping tool or any other application, Alpha-Mold delivers excellence in every project.Trust Alpha-Mold for your next project, where quality, innovation, and customer satisfaction are our top priorities.
The Difference of Prototype, Pilot, and Production Molds

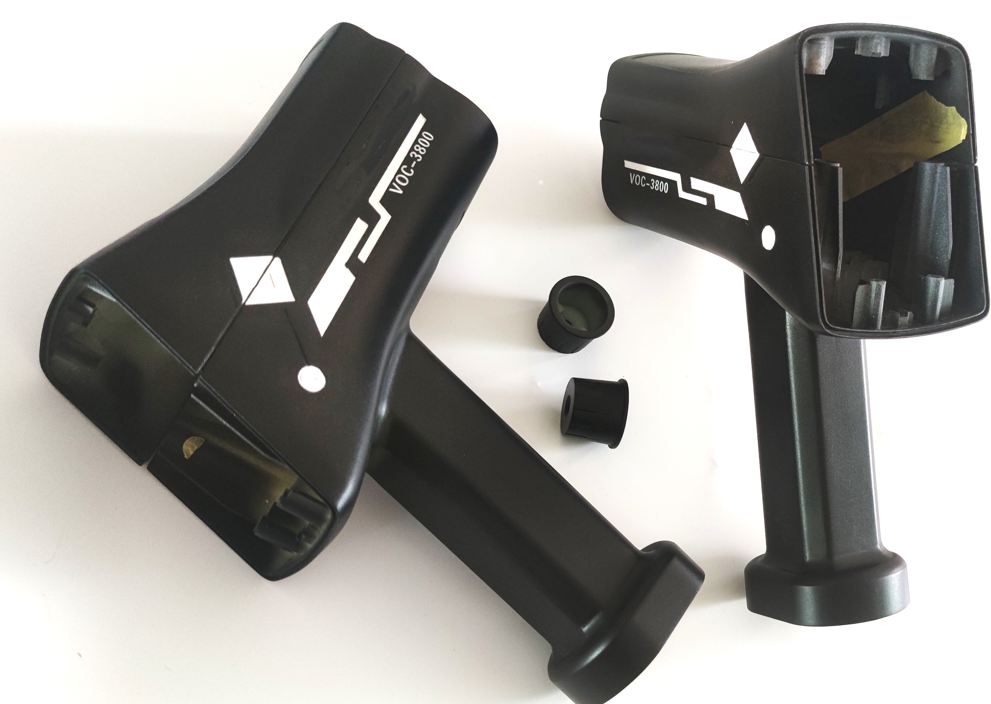

Prototype Mold
Prototype mold usually just focus producing a product, but the method of gating and cooling and ejection as well as materials may be very different to the production mold design. The aim is to create a functional part in the final material, providing sales and marketing teams with tangible samples to present to management or customers. Typically, prototype molds are made from aluminum or soft pre-hardened steel to ensure fast turnaround and minimize costs for low-volume production.
In recent years, alternative rapid prototyping methods like 3D printing, CNC machining, or vacuum casting have become popular, especially when there’s no need for testing the product’s strength or no request to use the final material. These methods offer speed and flexibility in creating prototypes without the need for a traditional mold.
Pilot Mold
A pilot mold is designed to closely mirror the production mold, featuring the same gating, parting line, insert design, materials, and cooling systems. Ideally, the production mold is conceptually designed first, and then an insert stack is extracted and placed into a pilot mold frame.This approach maximizes the learning potential from the pilot mold, ensuring that any issues can be identified and corrected before full-scale production begins. By aligning the pilot mold closely with the production mold, manufacturers can significantly reduce overall project lead time and ensure a smoother transition to mass production.

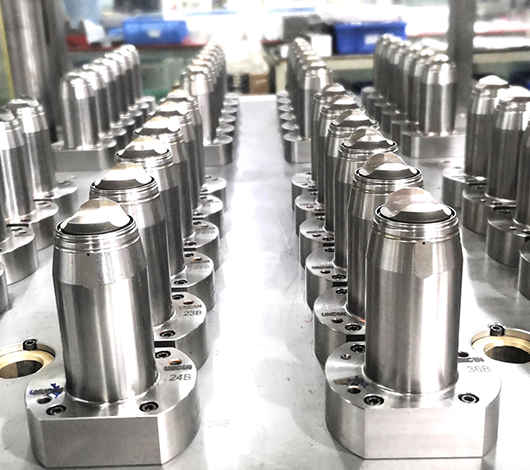

Production Mold
A production mold is the final and most refined version of the mold used for high-volume manufacturing, and it is also called series mold. Unlike prototype or pilot molds, production molds are engineered for long-term durability and consistent performance. They are typically constructed from high-quality, hardened steel or other robust materials to withstand the rigors of mass production, ensuring that each part produced meets exacting quality standards.
Production molds are designed with optimized gating, cooling, and ejection systems to maximize efficiency and minimize cycle times. This attention to detail ensures that the production process is not only efficient but also capable of producing parts with precise tolerances and excellent surface finishes, suitable for end-use applications.
The production mold represents the culmination of all prior development stages, incorporating insights gained from the prototype and pilot molds to deliver a tool that is fine-tuned for reliability and repeatability. Investing in a well-designed production mold is crucial for achieving consistent product quality, reducing manufacturing costs, and meeting high-volume production demands.

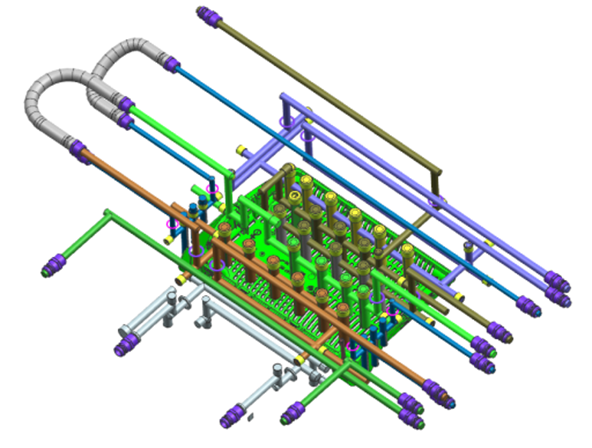

Our Engineering Expertise
Research shows that up to 80% of a product's cost is determined during the design phase. Effective design consultation is a key factor in reducing manufacturing costs and ensuring product success. At Alpha-Mold, we specialize in early-stage involvement to provide comprehensive product development consultancy that significantly impacts your bottom line.
Our experienced design team, with over 20 years various design experience. excels in creating molds tailored to your specific needs while optimizing structures and cooling channels for superior quality and efficiency. By partnering with Alpha-Mold, you ensure that your product achieves the highest standards with minimal production cycles, saving time and costs.
Our engineering capabilities include:
Reverse Engineering
Product Optimization
Mold Flow Analysis
DFM – Design For Manufacturing
3D CAD-CAM Mold Design
The Engineering Software Used At Alpha-Mold:
Mould design software: AutoCAD, UG
Programming software: Powermill
Data exchange: UG, PRO/E, SOLIDWORKS, CATIA, CAD, STP, X_T, IGS, PRT, DWG, DXF, PDF, etc.

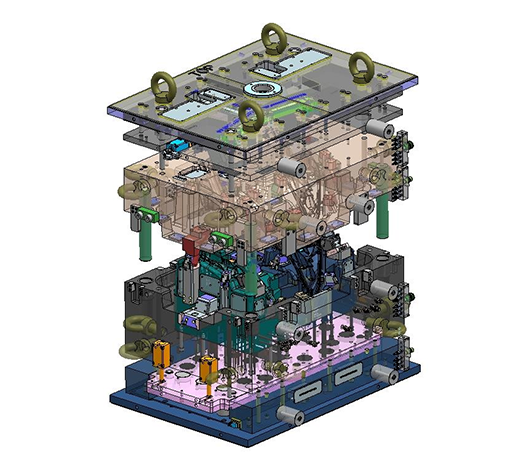

Mold Type at Alpha-Mold
Alpha-Mold is able to provide plastic injection molds for both rigid plastics and rubbers, metal injection molds for all types of precision stainless steel parts, and pressure die casting molds for aluminum, magnesium and zinc
Insert molding
2K mold /Two-shot mold
Gas-assisted Mold
Over molding
IML & IMD
Thin wall mold
Unscrewing mold

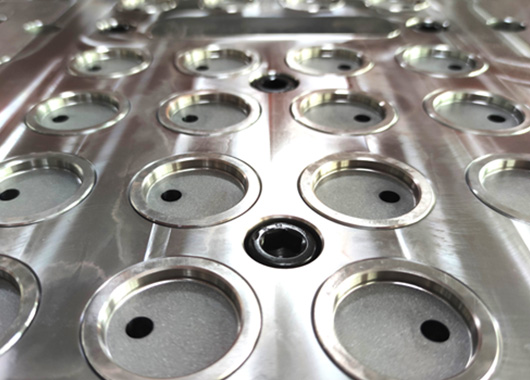

Multi-cavity mold
High temperature mold
LSR mold
Silicone & Rubber normal molds
Metal Injection Mold
Die casting mold
Stamping mold

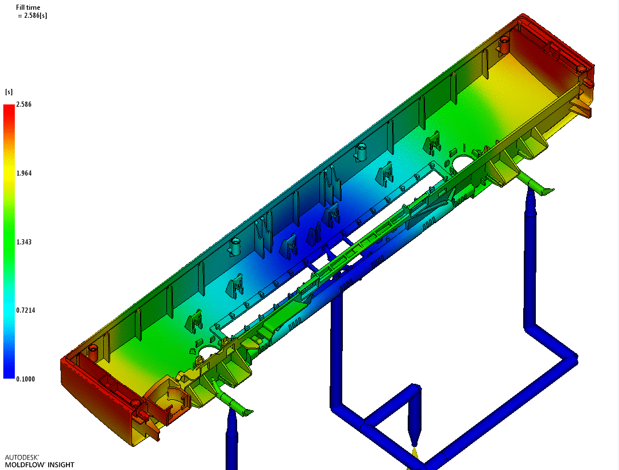

Mold Flow Example
We have an experienced Mold Flow team to do simulation studies based on the needs:
Gate Suitability
Filling
Tool/part Temperature
Sink marks
Welting line
Air traps
Deflection
Clamping force and what is a matter of interest
These meticulous procedures reflect our dedication to delivering molds that excel in durability, precision, and reliability. Choose Alpha-Mold for a partner who prioritizes quality at every step.

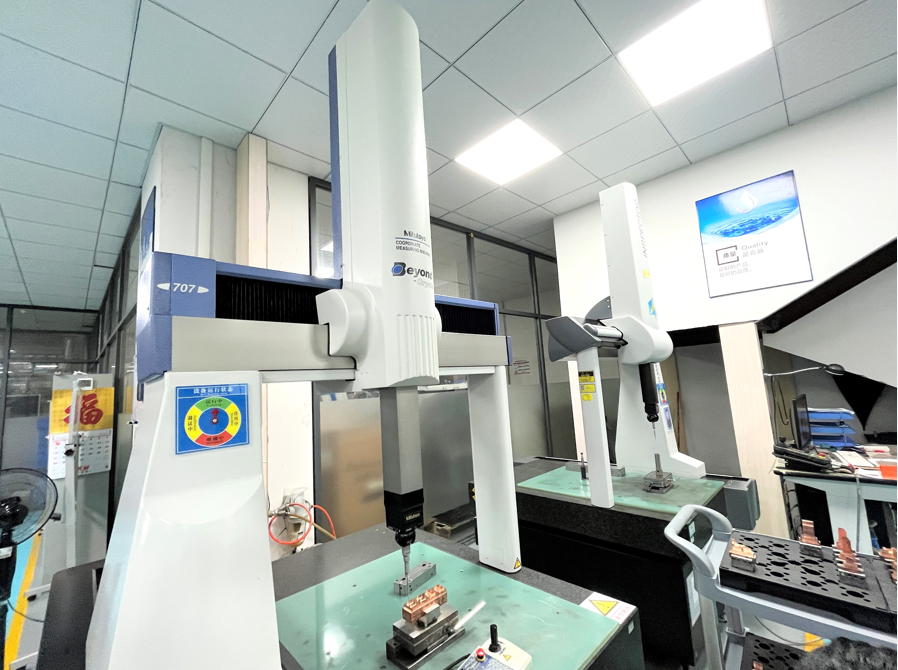

Our Quality Control
At Alpha-Mold, quality is not just a goal—it’s a commitment. This drives us to settle for nothing less than excellence in every aspect of our mold production and quality control, ensuring our customers are always satisfied with the molds they receive.
To uphold this standard, we implement a comprehensive quality assurance process that includes:
Part design checking.
Mold design review and finalization
Steel hardness inspection.
Electrodes inspection
Steel dimension inspection
Mold red/blue dye tests
Mold trial reports and sample inspections
Mold validation
Pre-shipment inspection
Our Mold Making Project Flow
01 Order confirmation
Hold internal kick off meeting
Feasibility study
Prepare DFM
Mold Flow analysis
02 Mold Degin
Design the mold based on confirmed DFM
Internal design review meeting
Review the design with customer
Optimise and finalise the design
03 Manufacturing
ERP management
Update the mold schedule weekly
Steel and electrode inspection
04 Mold Trial
Take photos and video
Scientific injection molding
Send samples to customer
Mold trial parameter report
First artical inspection report
05 Mold Debugging
Mold improvement
Engineering change
Test, verification and qualificaton
06 Customer Approval
Mold checking before shipping
Delivery documents (BOM, spare parts, final drawings, steel certificate, heat treatment certification, etc.)
Vacuum packaging for shipping
Win-win Cooperation
- Customer-oriented
- Quick response
- Effective communication
- Strong teamwork

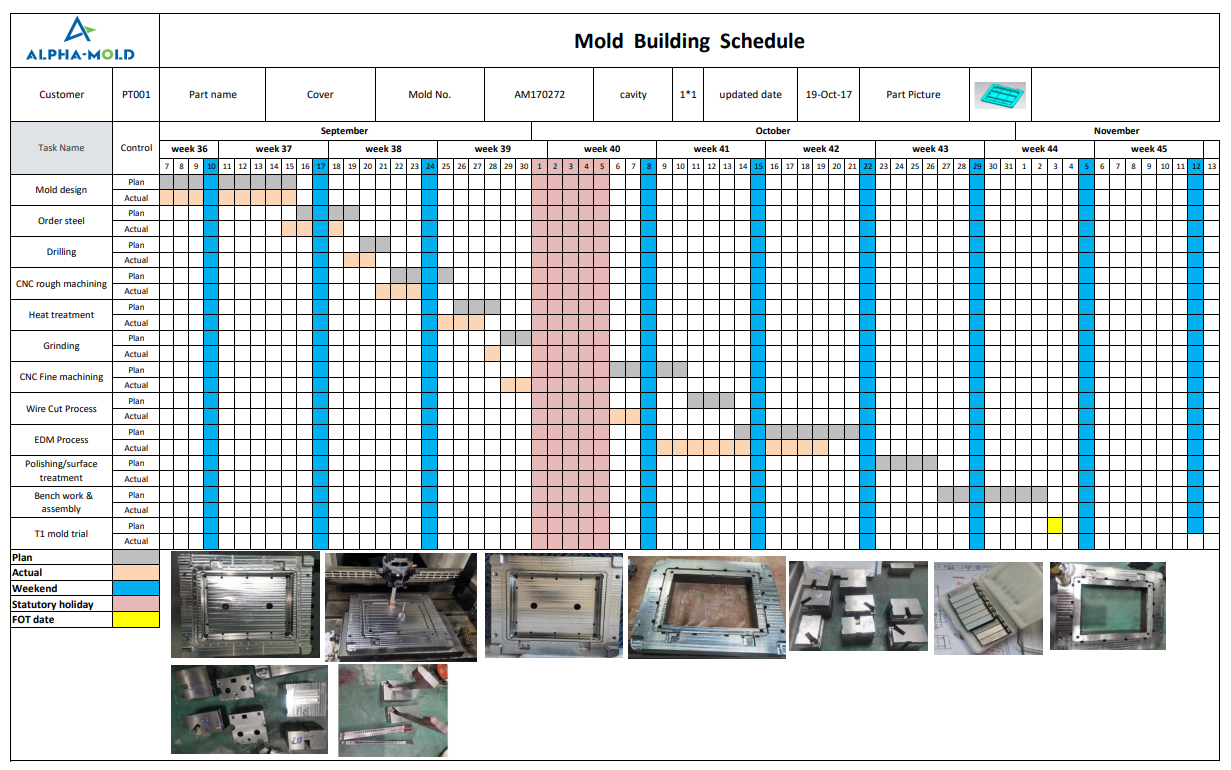

Our Weekly Tooling Progress Report Example

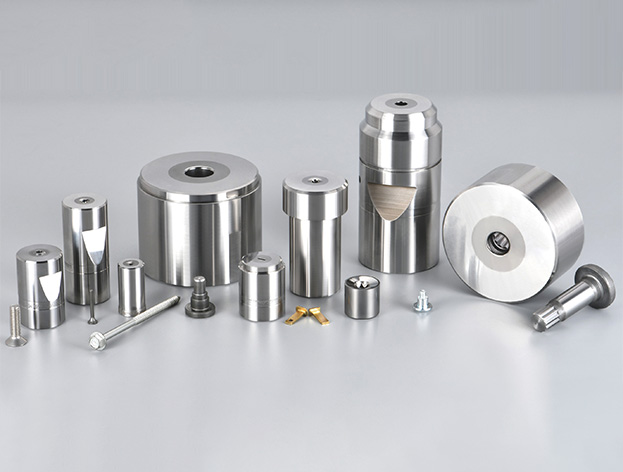

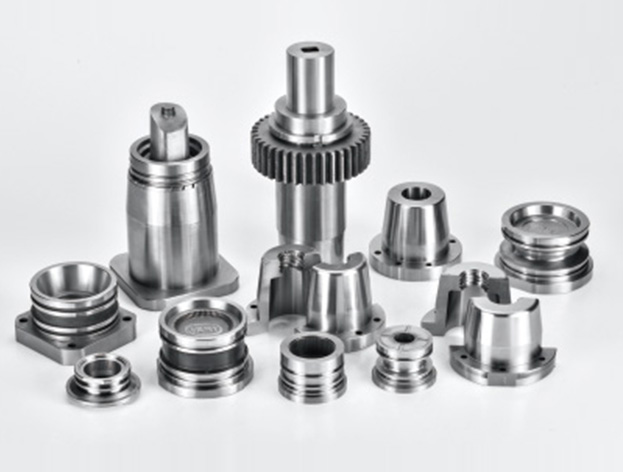

Precision Mold Components and Spare Parts Manufacturing
At Alpha-Mold, we have an independent department which focus on providing precision spare part making service to our customer, which allow us to offer competitive pricing and timely delivery.
We specialize in providing high precision mold components for a wide range of industries, including automotive, electronics, medical, and more. The tightest precision could be 0.002mm. With years of experience and advanced manufacturing technologies, we deliver custom mold parts tailored to meet the exact specifications of your production needs. Our mold parts include precision mold inserts, mold bases, mold core pins, ejector pins, mold slides, mold lifters, fixtures and gate inserts, all manufacturing for high-performance and long-lasting durability with using high quality material.
At Alpha-Mold, we use high quality materials, ensuring long-lasting durability and high performance. Whether you need standard mold parts or customized mold parts, Alpha-Mold guarantees tight tolerances and exceptional accuracy.
If you’re looking to improve your production efficiency or need highly specialized precision molding components, Alpha-Mold is your trusted partner for success.
Get Your Instant Quote Today
Our Main Mold Components Type
Contact us today for more information about our precision mold components and how we can help you achieve superior performance in your manufacturing process.

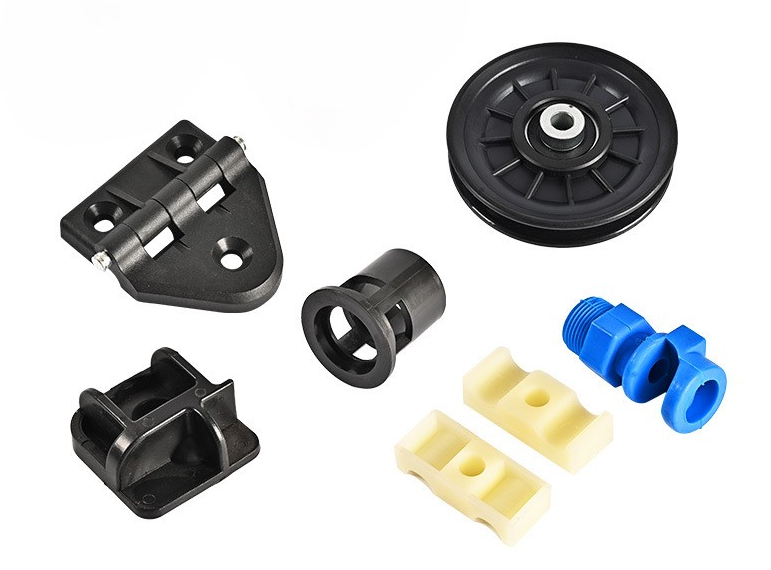

Plastic Injection Mold Picture
