Precision Metal Injection Molding (MIM) for High-Performance Parts

At Alpha-Mold, we specialize in Metal Injection Molding (MIM), a cutting-edge manufacturing process that combines the versatility of plastic injection molding with the strength and durability of metal. MIM is ideal for producing high-volume, complex metal parts with intricate geometries and tight tolerances. Our expertise in MIM allows us to deliver precision-engineered components that meet the stringent requirements of industries such as aerospace, automotive, medical devices, and consumer electronics.

Alpha-Mold’s advanced MIM capabilities include the use of a wide range of metal powders, including stainless steel, titanium, and copper, to create parts that exhibit superior mechanical properties and surface finishes. Whether you need small, high-strength parts for medical implants or lightweight, durable components for automotive applications, our MIM process ensures consistent quality and cost-effectiveness in large-scale production.

By leveraging our state-of-the-art CNC machining and in-house tooling capabilities, Alpha-Mold is able to produce MIM parts with unparalleled precision. Our commitment to quality control and innovation ensures that every component meets your exact specifications, from prototype to production.

Choose Alpha-Mold for your Metal Injection Molding needs, and benefit from our expertise in delivering complex, high-performance metal parts with exceptional accuracy and efficiency.

Get Your Instant Quote Today

How Does Metal Injection Molding Work?

The MIM process involves several stages that transform metal powder into dense, high-strength parts:

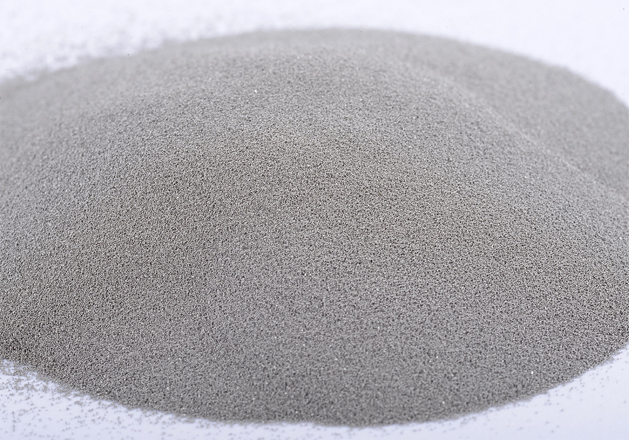

1、Feedstock Preparation: The process begins with the creation of a feedstock, a mixture of fine metal powders and a polymer binder. The metal powder typically consists of materials like stainless steel, titanium, or copper, chosen based on the desired properties of the final part.

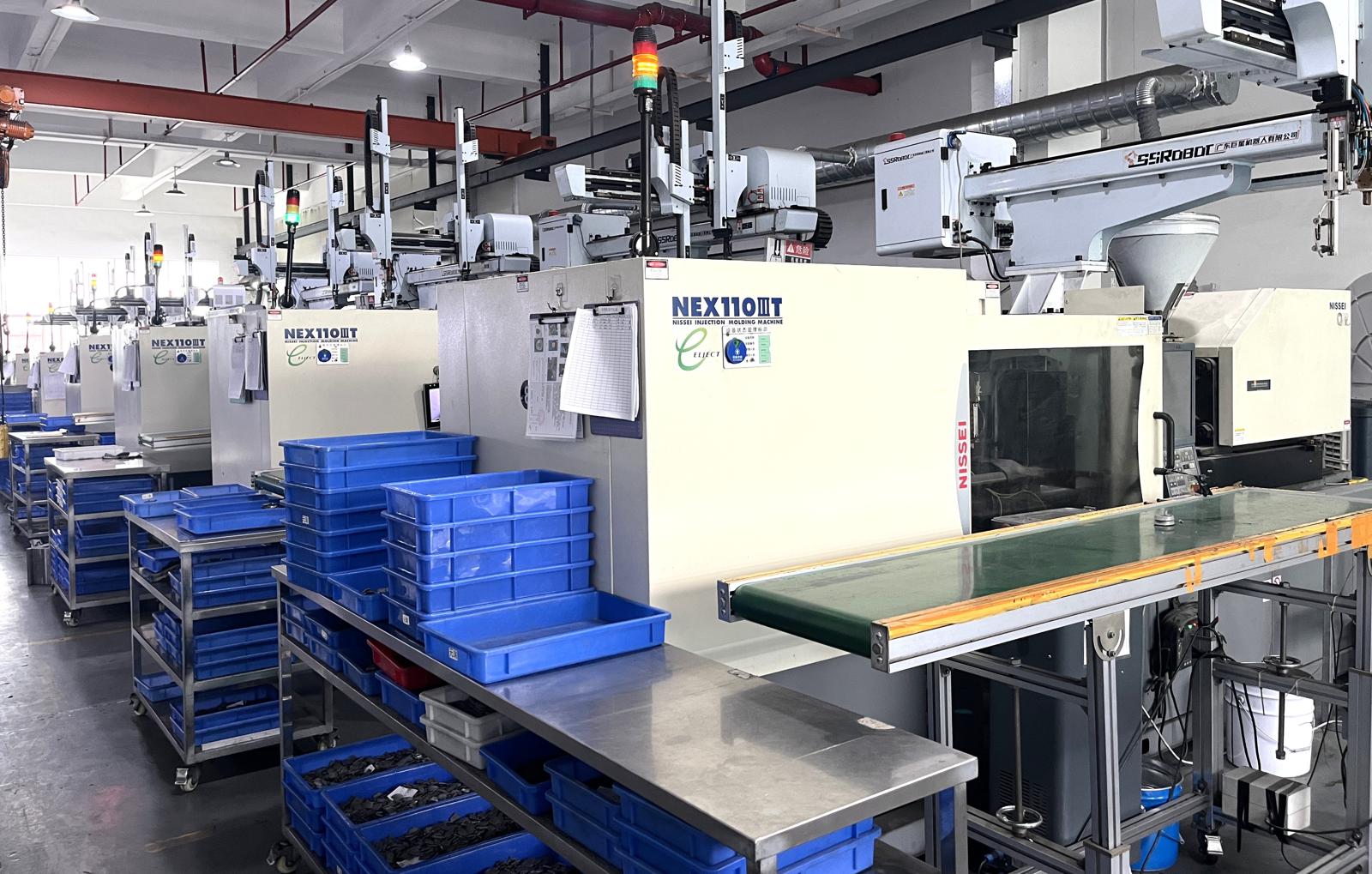

2、Injection Molding: The feedstock is then injected into a mold cavity using conventional injection molding machines. This stage shapes the material into the desired form, similar to how plastic parts are molded. The molded part, known as a "green part," retains the shape but is not yet fully dense or strong.


3、Debinding: The green part undergoes a debinding process to remove the polymer binder. This step is crucial as it prepares the part for sintering. Debinding can be done through thermal, solvent, or catalytic methods, depending on the binder material.

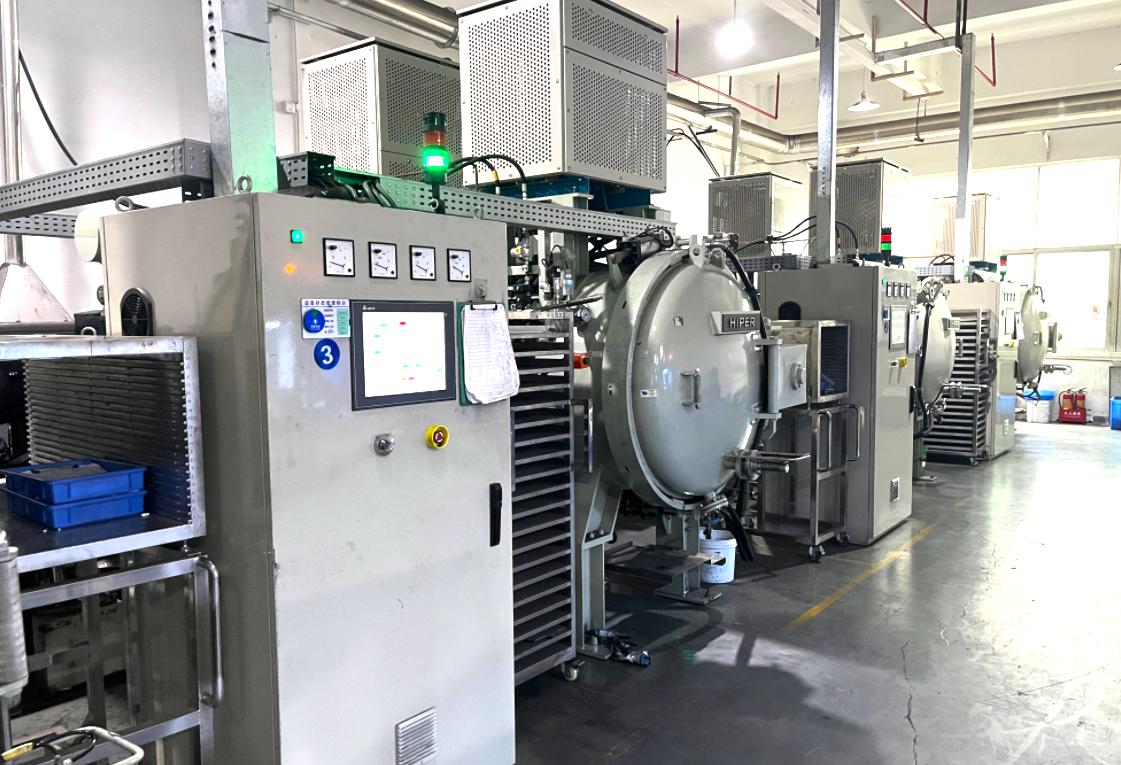

4、Sintering: The debound part, now referred to as a "brown part," is placed in a high-temperature furnace where it undergoes sintering. During sintering, the metal particles fuse together, densifying the part to approximately 96-99% of its theoretical density. This stage significantly enhances the mechanical properties of the part, giving it the strength and durability akin to wrought metal.

5、Post-Processing: Depending on the application, the sintered parts may undergo additional finishing processes such as machining, heat treatment, or surface coating to meet specific requirements.

Advantages of Metal Injection Molding (MIM)

  High-Volume Production of Complex Parts
MIM excels in producing large volumes of small, precision metal parts with complex geometries and intricate details. The process allows for the mass production of components with tight tolerances, making it ideal for industries requiring exacting standards.

  Greater Design Flexibility
Compared to other metalworking processes, MIM offers fewer design restrictions, providing designers with the freedom to create a wide range of shapes and structures. It also allows for the consolidation of multiple components into a single part, simplifying assemblies and reducing production costs.

  Superior Mechanical Properties
MIM components are known for their excellent mechanical properties, including high strength, hardness, and wear resistance. These attributes make MIM parts suitable for demanding applications in automotive, aerospace, medical, and industrial sectors.

  High-Quality Surface Finishes

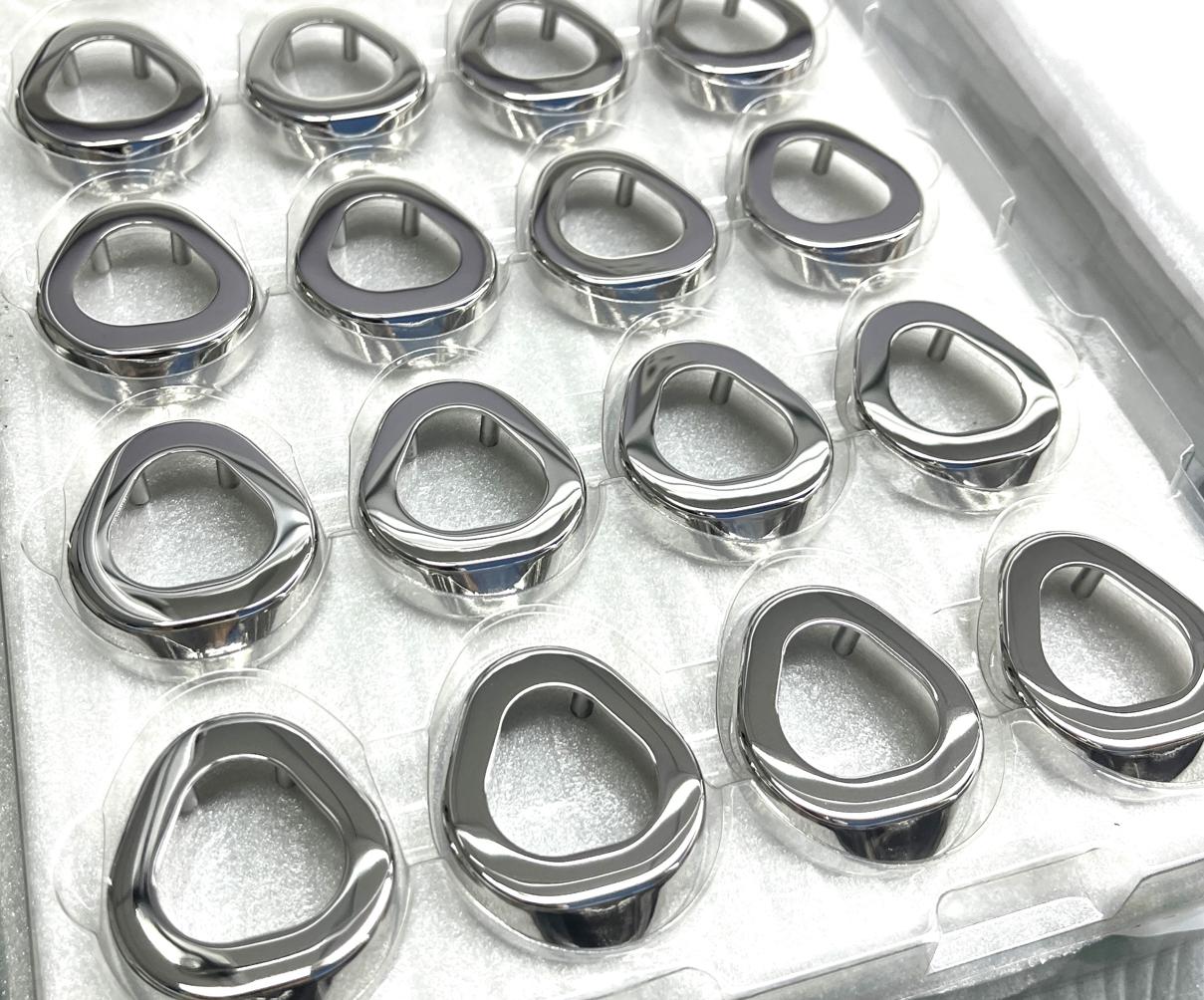

MIM produces parts with high-quality surface finishes, often meeting or exceeding the requirements of end-use applications. If desired, additional post-processing such as polishing, coating, or heat treatment can further enhance the finish and performance of the parts.

  Efficient Material Utilization
MIM minimizes material waste compared to traditional machining, with up to 95–98% of the material transformed into usable parts. This efficiency is especially beneficial when working with expensive materials like superalloys, specialty metals, or high-cost alloys, making the process both economical and sustainable.

  Cost-Effective at High Volumes
For high-volume production, MIM can be more cost-effective than other manufacturing methods like investment casting, machining, or stamping. The process reduces per-part costs, especially when producing complex parts in large quantities.

  Versatility in Material Selection
MIM is compatible with a wide variety of metals, including stainless steel, copper alloys, nickel alloys, and iron. This versatility allows manufacturers to tailor the material properties to meet specific requirements, such as corrosion resistance, thermal stability, and electrical conductivity.

Applications of Metal Injection Molding (MIM)

  Automotive Components

MIM is ideal for manufacturing complex, high-strength automotive parts such as gearboxes, turbocharger components, rivets, fuel injectors, fasteners and sensor housings. Its ability to produce lightweight, intricate geometries enhances vehicle performance and fuel efficiency.

  Medical and Dental Devices

MIM produces precise, biocompatible components used in surgical instruments, orthodontic brackets, medical implants, and endoscopic devices. Its capability to meet tight tolerances makes it essential for high-quality medical applications.

  Consumer Electronics

MIM is widely used in consumer electronics for creating smartphone hinges, connectors, and casings. It allows the production of miniaturized, high-strength components with excellent surface finishes, crucial for the electronics industry.

  Electrical and Electronic Connectors

MIM is used to manufacture high-precision connectors and terminals with excellent electrical conductivity and dimensional accuracy, critical for reliable performance in electronic devices.

  Aerospace Components

MIM's ability to create lightweight and complex aerospace parts, such as fasteners, brackets, and fuel system components, makes it invaluable. It reduces weight while maintaining high performance, crucial for aerospace engineering.

  Industrial Tools and Hardware

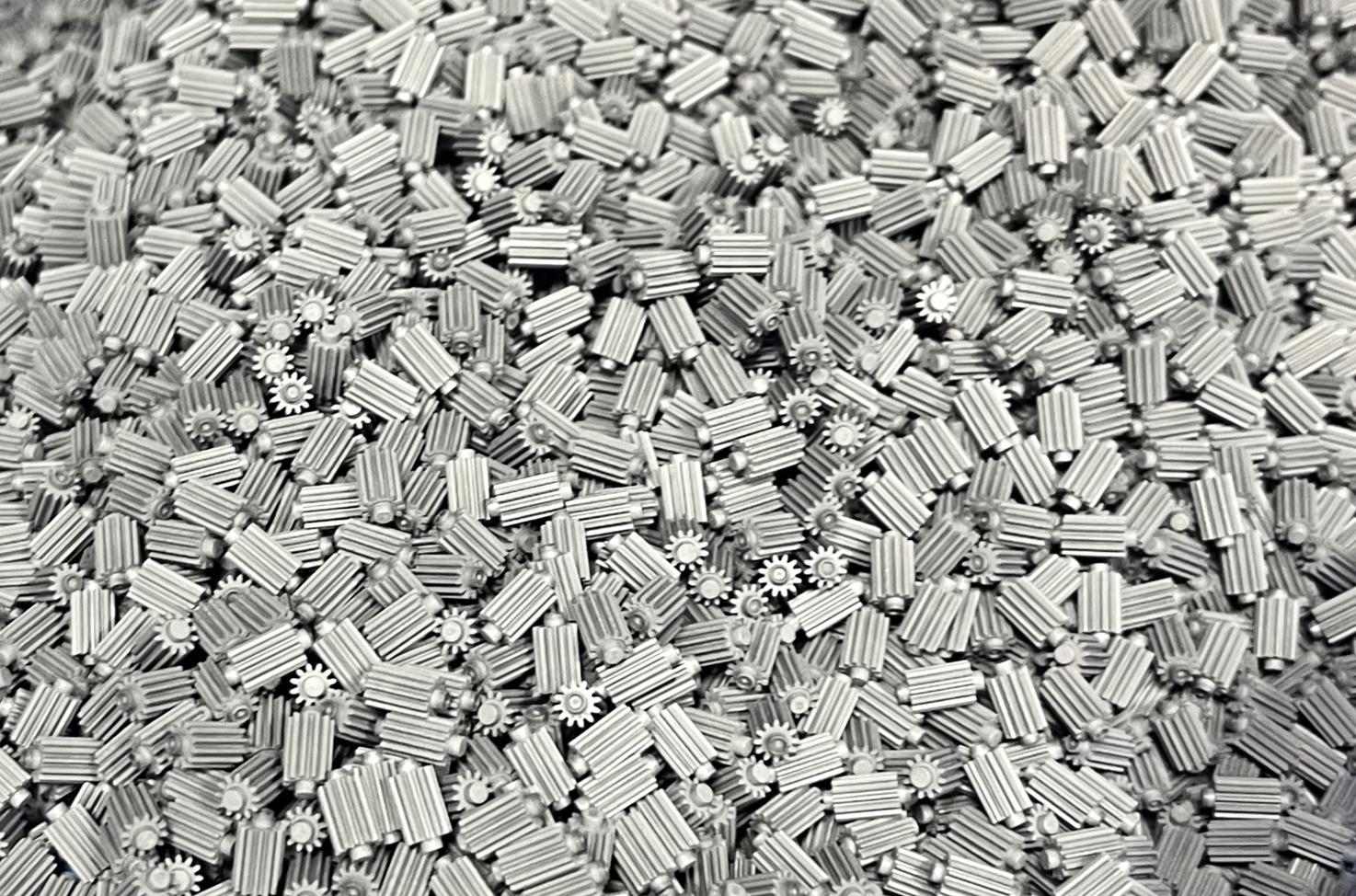

MIM is commonly used for industrial applications, producing durable parts like gears, cams, fasteners, and cutting tool inserts that demand high wear resistance and strength.

Metal Injection Molding (MIM) Accuracy

Metal Injection Molding (MIM) is known for its high precision, with dimensional tolerances typically ranging between ±0.3% and ±0.5%. To achieve even greater accuracy, post-machining of critical features is often employed. Compared to other manufacturing processes like die casting, MIM offers superior accuracy, as die casting often requires additional machining to achieve tight tolerances and finer surface finishes. While MIM provides excellent precision, it’s important to note that larger parts may experience more variation due to increased shrinkage during the sintering process, making them more susceptible to dimensional changes.

  Metal Injection Molding (MIM) vs. CNC Machining, Die Casting, and Forging.
Start Your New Quote

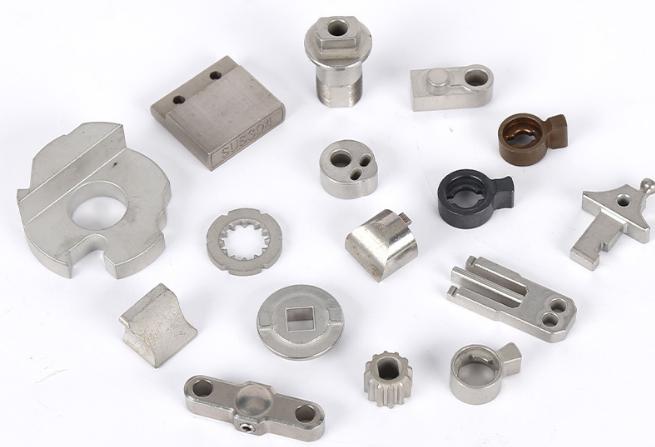

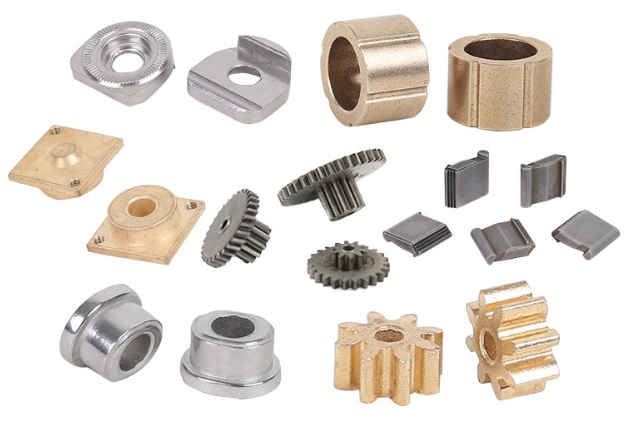

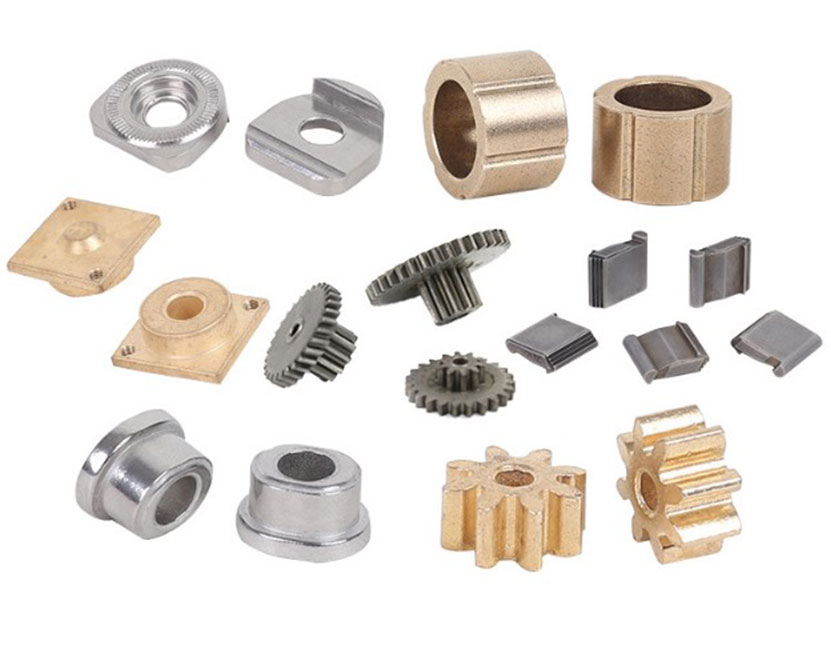

  Metal Injection Molding Parts
